Commercially Available Products
This is a selection of some of our comercially available products for engineering and testing

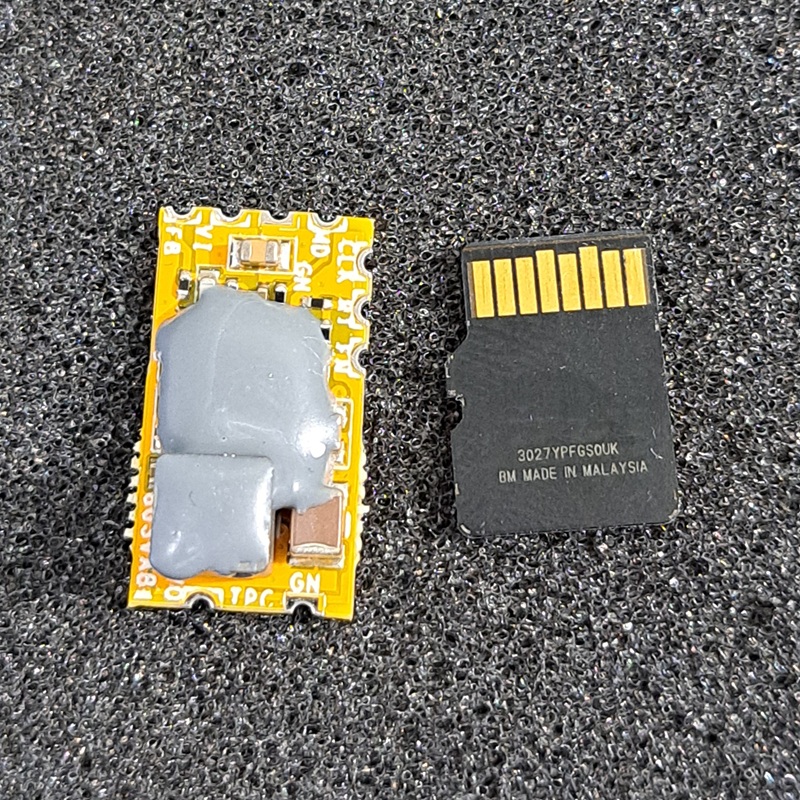

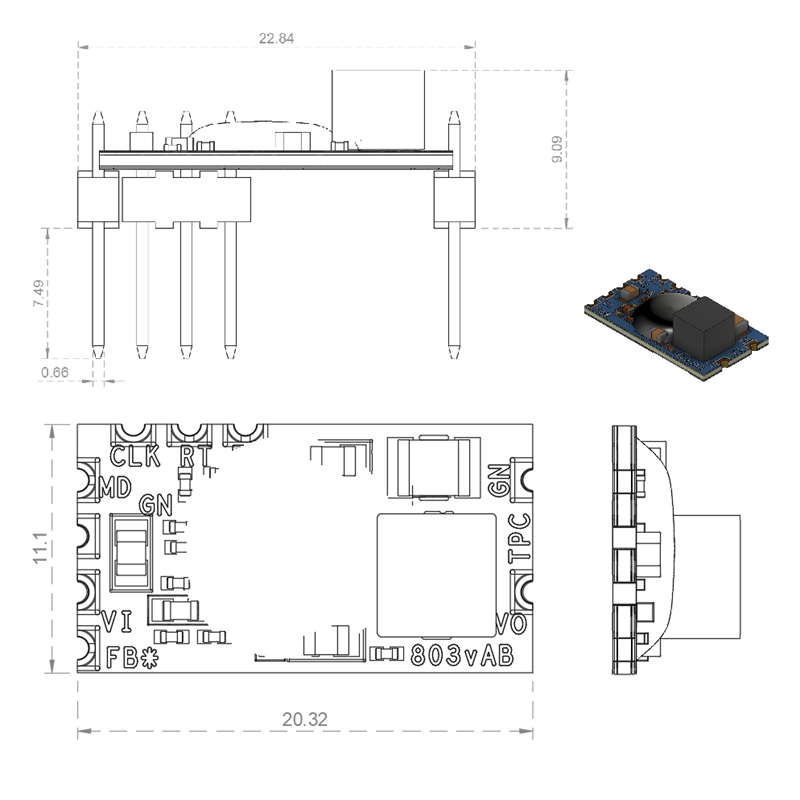

25W Miniature P.O.L
Wide Input Voltage (4-65Vin), 25W, up to 4A, Configurable Output and Operational Settings Point of Load for Battery Applications in harsh environments.
REF: PC202008-01
This Point.Of.Load module provides a high power density in a miniature package delivered at the load with minimal external components. Configurable output (from 3.4V up to 24V) with additional configuration settings for spread-spectrum or pulse skipping to reduce noise or light load quiescient current, this P.O.L offers extend opportunties to drive different loads and replace bulky DC/DC converters or linear regulators with continuous output current up to 4A. SMD and THT modules are available for ease of integration or repacement, as well as 2 heat-sink connections to provide alternative thermal management options in constrained spaces and designs or specific applications (space, aerospace, vacuum).
Reach out for more details

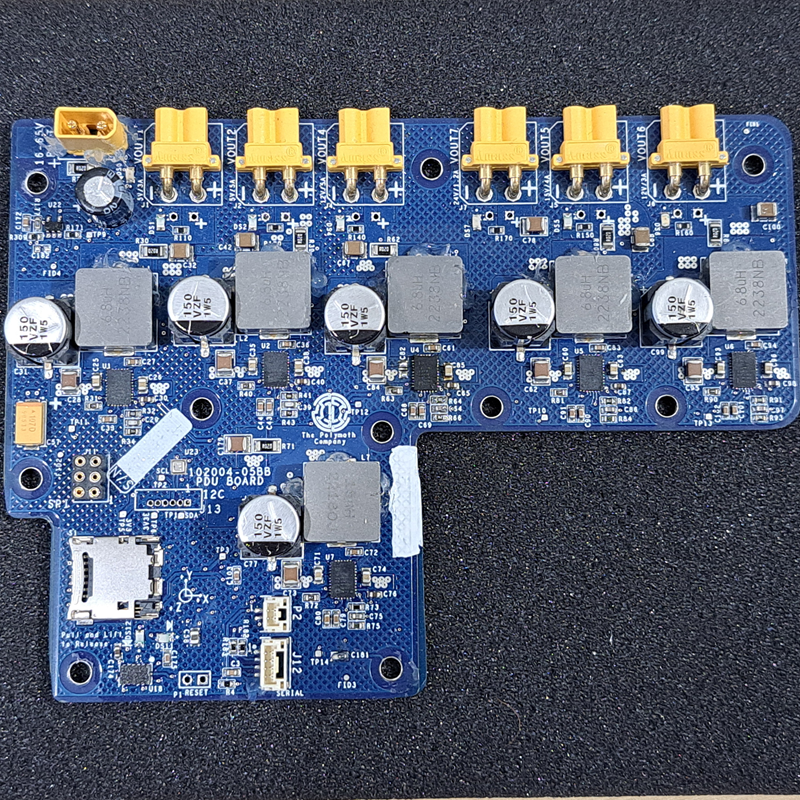

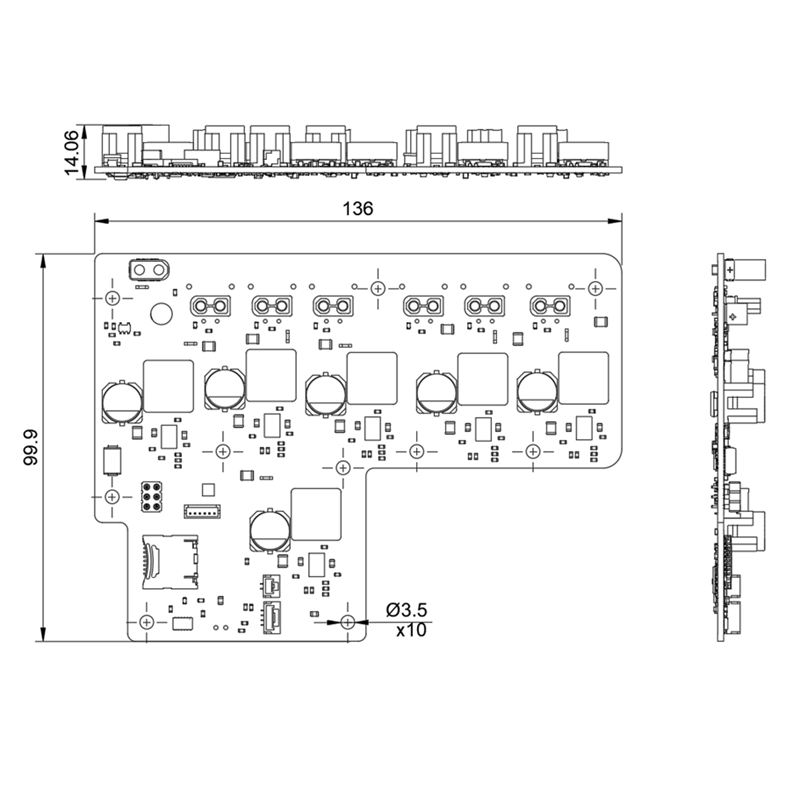

6 Outputs 330W Power Supply
Flight Proven, wide Input Voltage (4-65Vin), 6 Independent Outputs, up to 330W, up to 8A per output, Power Supply with Power logging and environmental conditions monitoring
REF: PC102004-05
This UAV Flight-Heritage DC-DC Converters Power Supply for on-board Payloads with main application in Aerospace and Unmanned Vehicle Markets (aerial, marine, terrestrial, underwater...). It provides 6 independent Outputs from 3.3V up to 24V, and up to 8A per output from a wide input voltage (4-65Vin). Some outputs can be linked together or chained or sequenced to power up loads at different timings (analog). Non flight-critical outputs could be configured with current limit settings. In addition, power monitoring and logging, for the input and each output, up to 25 Hz is available; as well as environmental conditions for payloads' section monitoring or flight controller cross-checking. These monitored parameters include onboard temperature (x3), external/remote temperature (1x), humidity, ambient pressure and altitude, shock & vibration. Vibration spectrum is also provided for ease of processing and high compression rate of raw data targetting preventive maintenance and condition based monitoring.
Reach out for more details

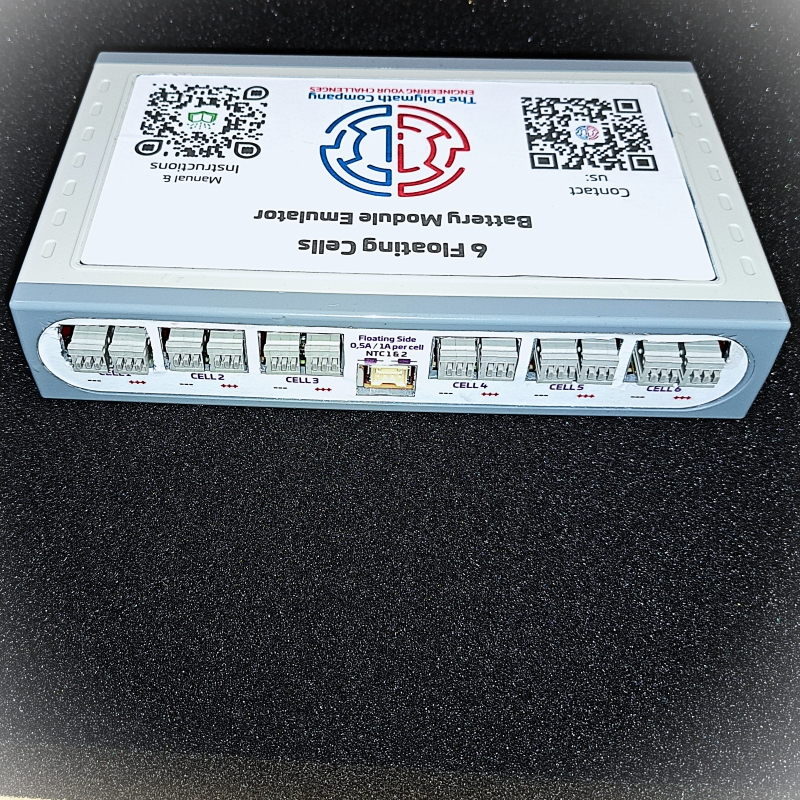

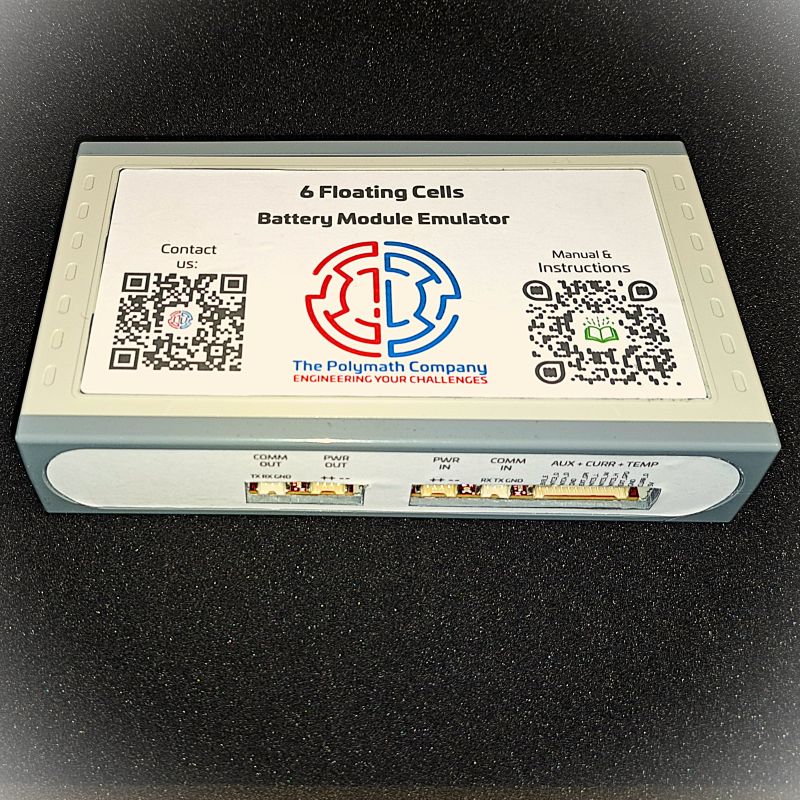

Battery Module Emulator 6cf
REF: PC202004-10
Up to 6 independent Floating Cells, 0.3V-5.5V battery emulation module unit, stackable until 1500VDC battery packs, with cell voltage and current monitoring, and 2x floating 10k NTC (Battery NTC) and 3x BMS temperature emulators and 1x pack current emulator
Each Battery Module Emulator Unit provides 6 indepedent floating and 2-quandrant cells emulation from 0.2V to 5.5V. BMEU can be stacked up to total 1500VDC, while communication and setting is daisy chained and only requires one COM port. Each BMEU allows 2x Cell Floating Temperature Sensors emulation, 3x BMS temperature sensors as well as 1x Current Sensor Emulation. For BMS testing and cross-checking, each cell voltage is measured and reported. Current can be sinked and sourced up to 1A per cell on each BMEU. Cells are field replaceable. The BMEU is designed with repairability and modularity. The base and each cell can be purchased independently. Cells with different configuration for future needs are in design and can be installed on the previously purchases bases.
Reach out for more details

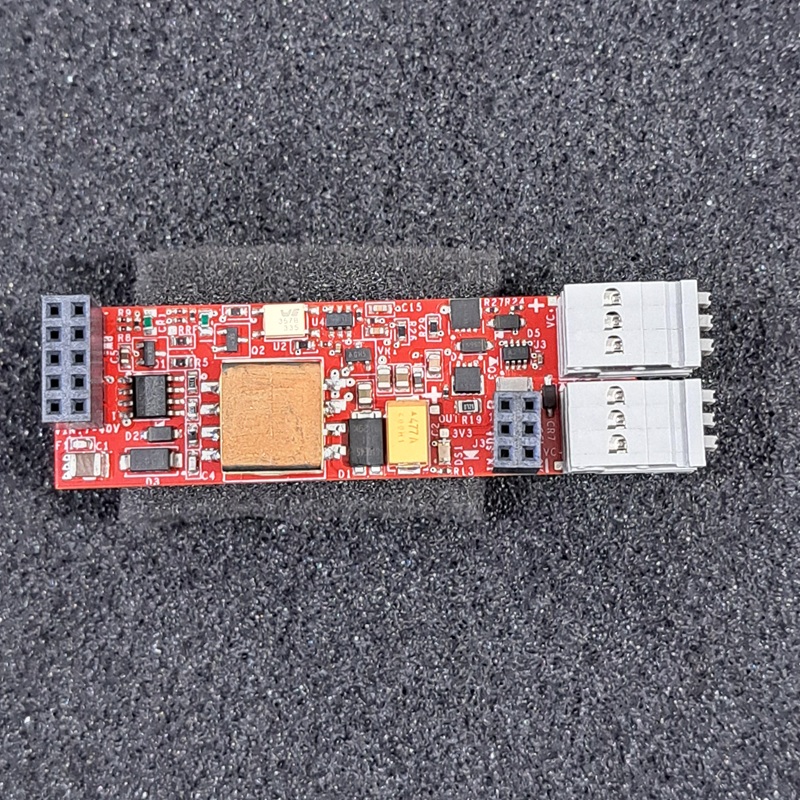

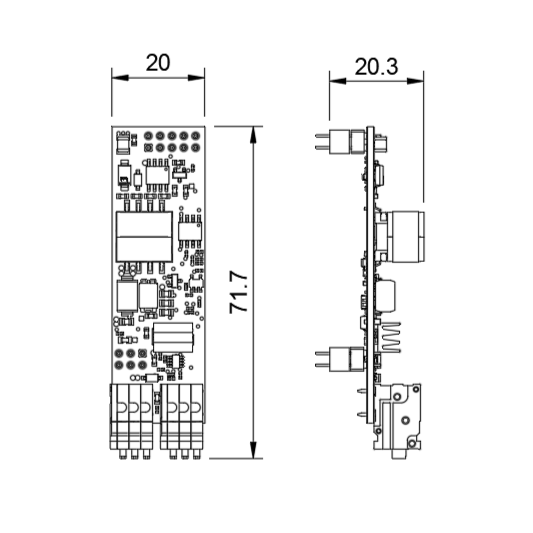

Battery Cell Emulator Unit
REF: PC202004-26
Fully Analogue Independent, 2-quadrant Cell Unit with voltage emulation from 0.2V-5.5V. Isolation up to 1500VDC for large BESS emulation. Voltage and Current monitoring with isolation is also available for up to 16 units.
Each Battery Cell Emulator Unit provides a floating cell emulation from 0.2V to 5.5V and up to 1A current sourcing and sinking capabilities. The Cell emulator is isolated up tp 1500VDC, on input and outputs. Each Cell Voltage has a resolution of 0.25mV controlled by 2x 14-bits PWM signals and an optimized circuit for higher efficiency at sinking and sourcing current at lower cell voltage. On-board cell output voltage and current measurement with 12-bits resolution. The unit is field replaceable and a heat-sink is recommended for operation above 300mA. The unit has an embedded fuse that be be replaced in a workshop.
Reach out for more details

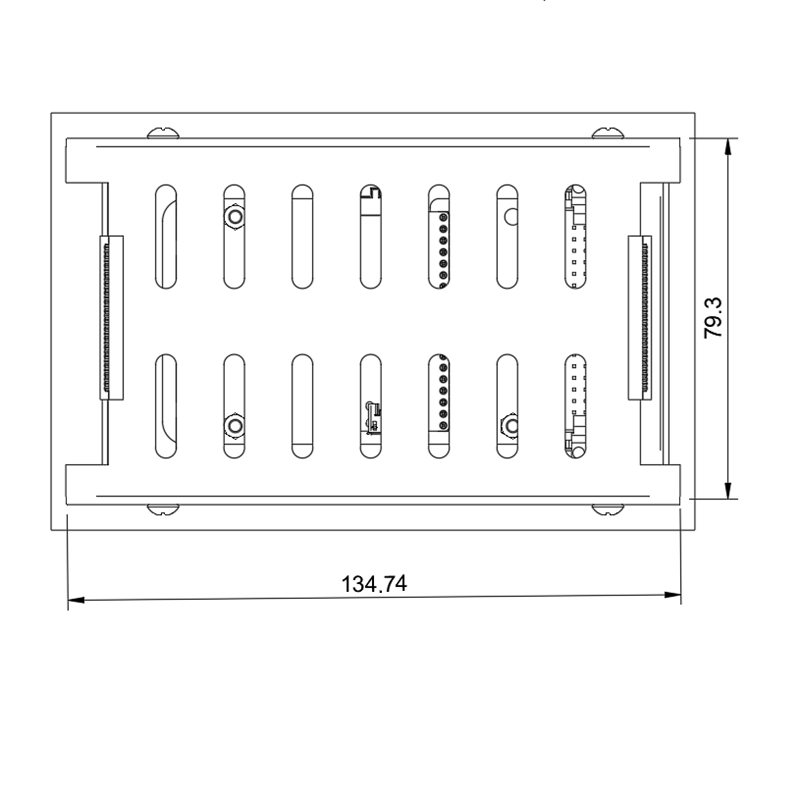

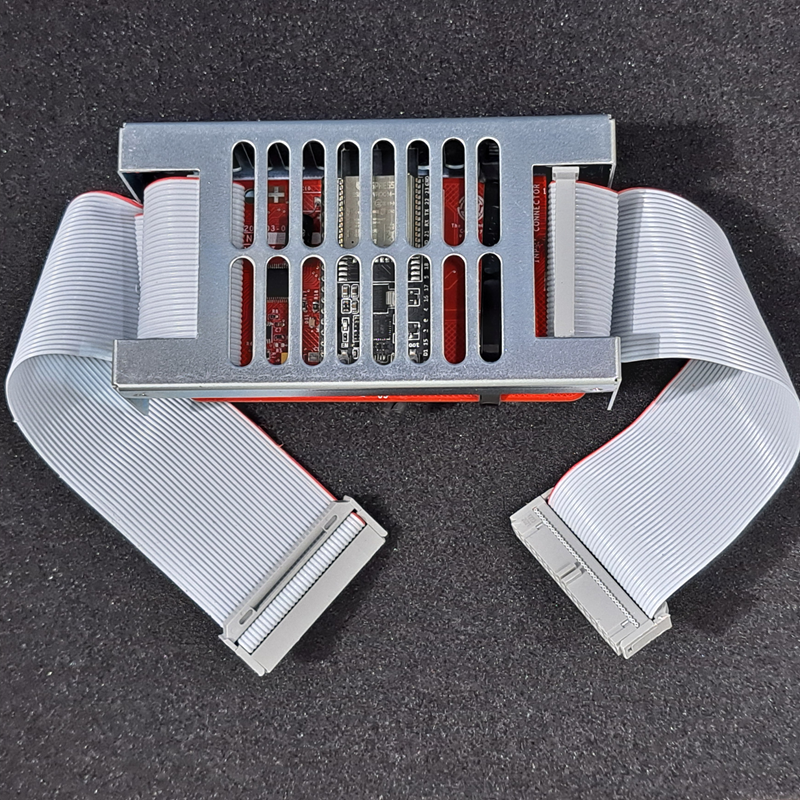

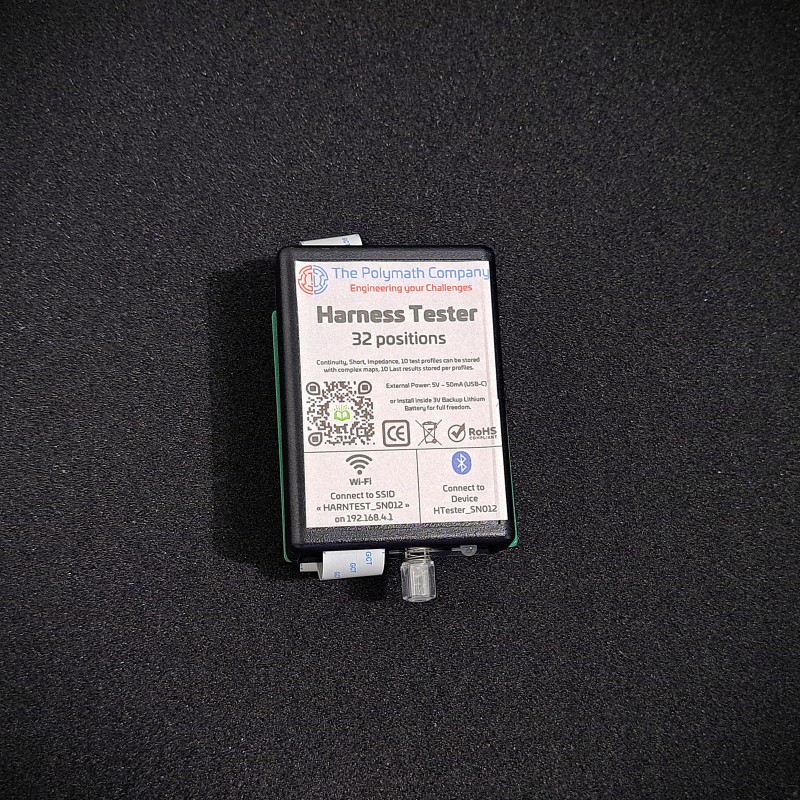

Handheld Harness Tester with Adapter PCB
REF: PC202003-08
With up to 32 ways per test side, this Pocket Harness Tester with Wireless communication and Battery operations is ideal for field use and increased QC at production
Connect this 32pin to 32pin Smart Harness Tester to your custom made PCBA adapter (PCB + connectors) made in seconds with our automated tool and you are ready to test long and complicated harnesses. This simpler Harness tester allows continuity testing from a 32pin input to a 32pin output connector, cross talk, leakage and resistance testing in advanced mode. With advanced PCBA adapter made to specifications, short-circuit testing and cross-talk will be performed on each connector and on specific combination of signals. Adapted for field trips for troubleshooting or inspection, additional quality control on production site and at suppliers, you can ramp up your QC to cover every item at a fraction of the development and acquisition cost of bench harness tester. All you need is a phone to connect on bluetooth or WiFi or a computer for bluetooth or USB or WiFi connection and you can run 1000's of test on each battery charge. You can also connect in WiFi for troubleshooting mode and harness mapping mode to indentify faults. Use the WiFi to add new harnesses and acceptance criteria on the fly. A generic Adapter PCB will be provided to mount several headers to connect to harness tester FFC cables for ease of prototyping of the setup for specific harnesses.
Reach out for more details
Harness Tester Core
REF: PC202003-05
Up to 32 pin per side Pocket Harness Tester with Wireless communication for field use and increase QC at production
Connect this 32pin to 32pin Smart Harness Tester to your custom made PCBA adapter (PCB + connectors) made in seconds with our automated tool and you are ready to test long and complicated harnesses. This simpler Harness tester allows continuity testing from a 32pin input to a 32pin output connector, cross talk, leakage and resistance testing in advanced mode. With advanced PCBA adapter made to specifications, short-circuit testing and cross-talk will be performed on each connector and on specific combination of signals. Adapted for field trips for troubleshooting or inspection, additional quality control on production site and at suppliers, you can ramp up your QC to cover every item at a fraction of the development and acquisition cost of bench harness tester. All you need is a phone to connect on bluetooth or WiFi or a computer for bluetooth or USB or WiFi connection and you can run unlimited tests. You can also connect in WiFi for troubleshooting mode and harness mapping mode to indentify faults. Use the WiFi to add new harnesses and acceptance criteria on the fly.
Reach out for more details
